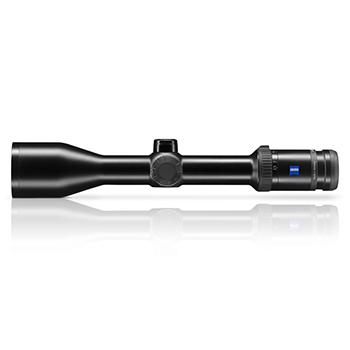

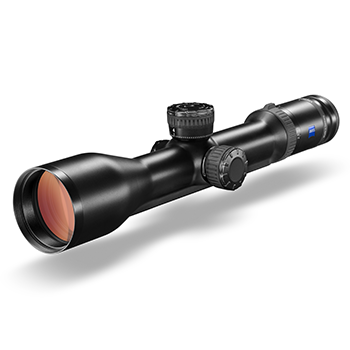

ZEISS RS Victory HT 2.5-10x50 ill. (60)
De ultieme allrounder voor alle jacht toepassingen: tijdens de aanzit of bewegingsjacht, deze richtkijker is ideaal voor elke situatie. Het innovatieve optische concept van het VICTORY HT assortiment komt in de schemering helemaal tot zijn recht. Alleen leverbaar met kruis 60.
De ZEISS VICTORY HT 2.5 – 10 x 50: is ook verkrijgbaar met rail en met ASV en ASV-H.
| Magnification |
2.5 x |
10 x |
| Effective Lens Diameter |
37.7 mm |
50 mm |
| Exit Pupil Diameter |
15 mm |
5 mm |
| Twilight Factors |
7.1 |
22.4 |
| Field of View at 100m |
14.8 m |
4.1 m |
| Subjective Viewing Angle |
8.5 ° |
2.3 ° |
| Diopter Adjustment Range |
+2 | -4 dpt |
| Eye Relief |
90 mm |
| Parallax-Free |
100 m |
| Adjustment Square at 100m |
140 cm |
| Adjustment per Click at 100m |
1 cm |
| Centre Tube Diameter |
30 mm |
| Eye Piece Tube Diameter |
42 mm |
| Objective Tube Diameter |
56 mm |
| LotuTec® |
Yes |
| Nitrogen Filling |
yes |
| Water Resistance |
400 mbar |
| Functional Temperature in °C |
-25 | +50 °C |
| Length |
321 mm |
| Weight without Illuminated Reticle |
Without Inner Rail |
- |
| With Inner Rail |
- |
| Weight with Illuminated Reticle |
Without Inner Rail |
525 g |
| With Inner Rail |
550 g |
| Order numbers without Illuminated Reticle |
Without Inner Rail |
- |
| With Inner Rail |
- |
| Order numbers with Illuminated Reticle |
Without Inner Rail |
522425 |
| With Inner Rail |
522424 |
| Order numbers with Illumination Control |
With Inner Rail |
- |
Artikel: ZEISS RS Victory HT 2.5-10x50 ill. (60)
